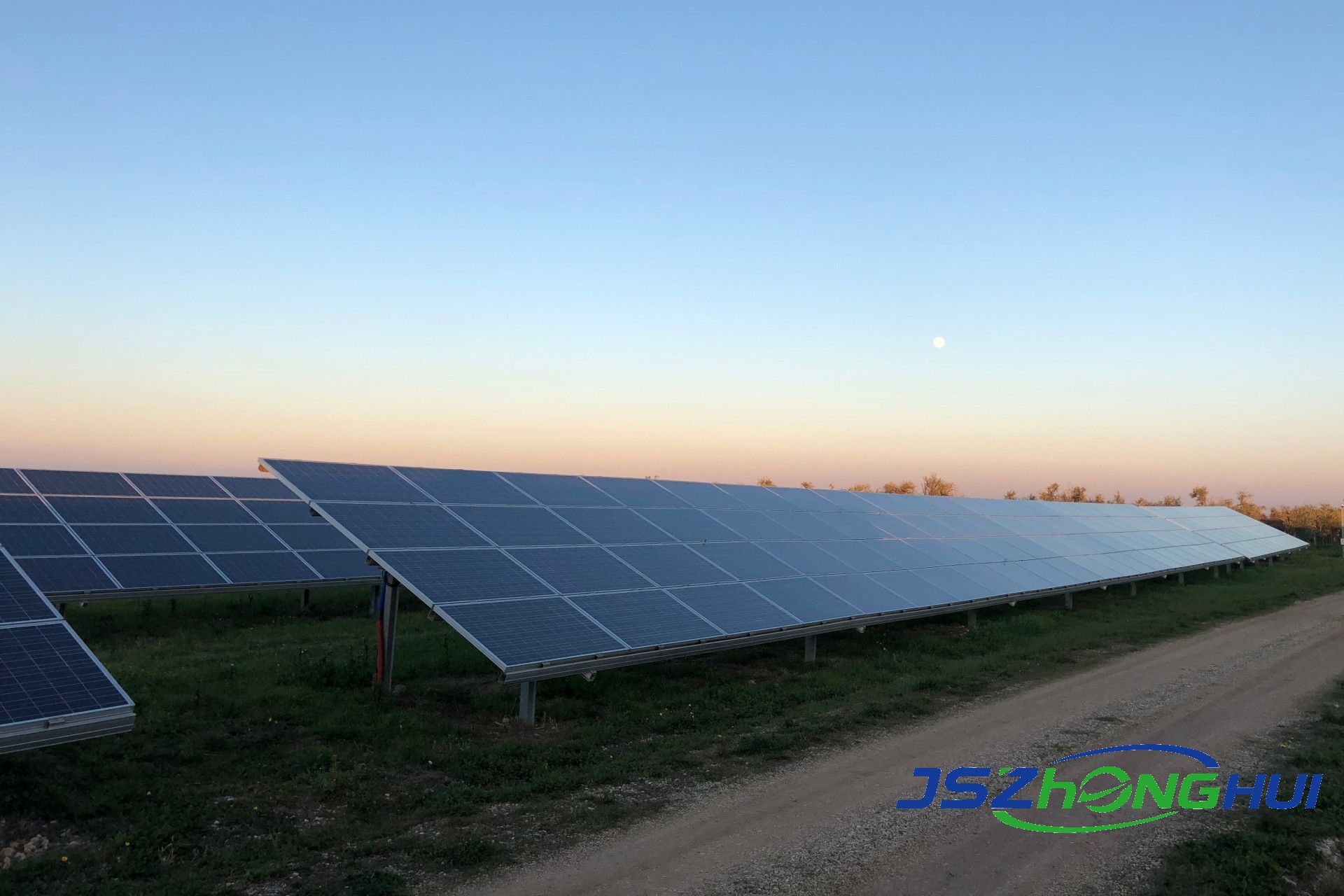

平地面光伏系统
平地面光伏支架系统是针对各类未利用地、荒地、滩涂等地面场景开发的固定式光伏安装解决方案。系统主要由立柱、斜梁、导轨、连接件等部件组成，采用“立柱+斜梁+导轨”的三角形/梯形结构，将光伏组件以最佳倾角（通常根据项目所在地纬度设计）固定于地面上，实现最大发电收益。支架基础可采用混凝土独立基础、螺旋桩基础或配重基础等方式，适应不同地质条件。
核心参数：
参数 | 数值 |
材质 | 铝合金6063-T5/热镀锌钢 |
抗风荷载 | 50m/s |
雪荷载 | 1.5kN/m2 |
设计寿命 | 25年 |
质保 | 10年 |
核心优势：
结构稳固可靠：三角形/梯形结构设计，承载能力强，可满足不同风压和雪压区域的荷载要求，设计使用寿命25年以上；
材质灵活可选：碳钢热镀锌（经济性好、强度高）与铝合金（轻量化、耐腐蚀）双方案，适应不同项目预算和环境需求；
基础形式多样：支持混凝土基础、螺旋桩、配重等多种基础方案，适应各类地质条件；
安装便捷：工厂高度预装化，现场组装快速，可有效缩短施工周期；
倾角可定制：倾角0~60°可调，可根据项目所在地纬度定制最佳发电倾角。
适用场景：适用于各类未利用地、荒地、荒山、滩涂、平原、丘陵等地面场景的分布式或集中式光伏项目。也适用于污水处理厂、湖泊、鱼塘等大跨度应用场合（可采用柔性支架方案）
Flat-Ground PV System
The flat-ground PV mounting system is a fixed PV installation solution developed for ground scenarios such as unused land, wasteland and tidal flats. The system mainly consists of posts, inclined beams, rails and connectors, using a "post + inclined beam + rail" triangular/trapezoidal structure to fix PV modules to the ground at the optimal tilt angle (usually designed according to the latitude of the project site) for maximum power-generation returns. The mounting foundation can be a concrete pad footing, helical pile foundation or ballast foundation to suit different geological conditions.
Core Parameters:
Parameter | Value |
Material | Aluminium alloy 6063-T5/Hot-dip galvanised steel |
Wind load resistance | 50 m/s |
Snow load | 1.5 kN/m² |
Design life | 25 years |
Warranty | 10 years |
Core Advantages:
Stable and reliable structure: triangular/trapezoidal structural design with strong load-bearing capacity, meeting the load requirements of different wind-pressure and snow-pressure zones, with a design service life of over 25 years;
Flexible material options: dual solutions of hot-dip galvanised carbon steel (cost-effective and high-strength) and aluminium alloy (lightweight and corrosion-resistant), suiting different project budgets and environmental requirements;
Diverse foundation types: supports concrete foundations, helical piles, ballast and other foundation solutions to suit various geological conditions;
Easy installation: highly pre-assembled at the factory and quickly assembled on site, effectively shortening the construction period;
Customisable tilt angle: The tilt angle is adjustable from 0–60° and can be customised to the optimal power-generation tilt according to the latitude of the project site.
Application Scenarios: suitable for distributed or utility-scale PV projects on unused land, wasteland, barren hills, tidal flats, plains and hills. It also suits long-span applications such as sewage treatment plants, lakes and fishponds (a flexible mounting solution can be used)
