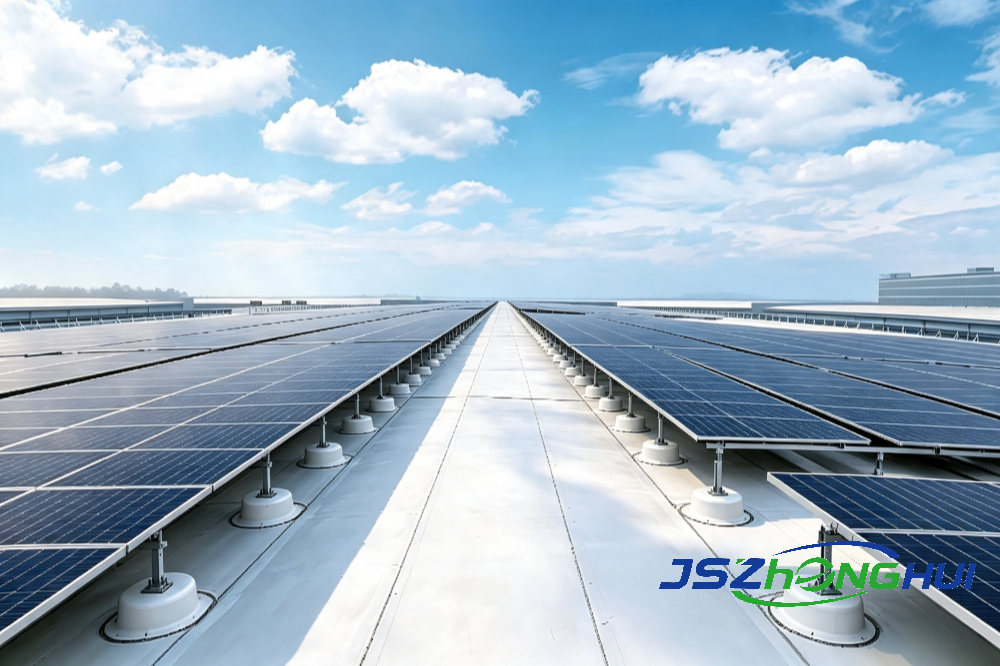

TPO 光伏系统
TPO柔性屋面光伏支架系统是专门为铺设TPO/PVC高分子防水卷材的金属或混凝土屋面开发的分布式光伏安装解决方案。该系统采用预制锚固基座（或免打孔基座） 作为核心连接件，基座自带与屋面同材质的TPO防水片材，通过热风焊接与屋面卷材融为一体，实现光伏支架与防水屋面的无损连接，彻底解决传统穿透式安装带来的漏水隐患。
核心参数：
参数 | 数值 |
材质 | 铝合金6063-T5/热镀锌钢 |
抗风荷载 | 50m/s |
雪荷载 | 1.5kN/m2 |
设计寿命 | 25年 |
质保 | 10年 |
核心优势：
100%防水保障：基座自带TPO片材与屋面卷材通过热风焊接形成一体式防水层，完全杜绝穿孔漏水隐患；部分方案还采用真空检测仪对焊缝进行气密性检测，确保万无一失；
零穿透安装：免打孔基座直接热熔焊接于屋面卷材表面，无需穿透防水层；或通过预制锚固件穿透保温层固定在钢结构檩条上，同时以TPO片材覆盖修复，真正做到“内固外防”；
轻量化设计：粘贴式方案每平方米仅增加约2kg荷载，对屋面承重友好；铝合金导轨重量轻，耐腐蚀性能卓越；
安装便捷高效：基座与导轨采用模块化设计，预装化程度高，可大幅节省现场施工时间和成本；
系统兼容性强：可适配有框、无框等多种类型光伏组件，组件排布可横向或竖向灵活布置。
适用场景：
适用于各类铺设TPO/PVC防水卷材的工商业建筑屋顶，包括钢结构厂房、混凝土屋面、大型商业建筑、数据中心、物流仓库、机场等。系统兼容彩钢瓦、混凝土、木结构等多种基层类型上采用TPO/PVC膜防水的屋面。
TPO PV System
The TPO flexible roof PV mounting system is a distributed PV installation solution developed specifically for metal or concrete roofs covered with TPO/PVC polymer waterproofing membrane. The system uses a prefabricated anchoring base (or a drill-free base) as the core connector; the base comes with a TPO waterproofing sheet of the same material as the roof, which is fused with the roof membrane by hot-air welding, achieving a non-destructive connection between the PV mounting system and the waterproof roof and completely solving the leakage risk caused by traditional penetrating installation.
Core Parameters:
Parameter | Value |
Material | Aluminium alloy 6063-T5/Hot-dip galvanised steel |
Wind load resistance | 50 m/s |
Snow load | 1.5 kN/m² |
Design life | 25 years |
Warranty | 10 years |
Core Advantages:
100% waterproofing assurance: the TPO sheet on the base is hot-air welded to the roof membrane to form an integrated waterproofing layer, completely eliminating the risk of leakage through penetrations; some solutions also use a vacuum tester to check the air tightness of welds, ensuring nothing is left to chance;
Zero-penetration installation: the drill-free base is hot-melt welded directly onto the roof membrane surface without penetrating the waterproofing layer; alternatively, prefabricated anchors penetrate the insulation layer and are fixed to the steel purlins, with TPO sheets covering and repairing the puncture — truly achieving "internal fixing and external protection";
Lightweight design: the adhesive solution adds only about 2 kg of load per square metre, which is friendly to the roof's load-bearing capacity; the aluminium alloy rails are light in weight with excellent corrosion resistance;
Easy and efficient installation: the base and rail adopt a modular design with a high degree of pre-assembly, greatly saving on-site construction time and cost;
Strong system compatibility: compatible with framed, frameless and other types of PV modules; module layout can be arranged flexibly in landscape or portrait orientation.
Application Scenarios:
suitable for all kinds of commercial and industrial building roofs covered with TPO/PVC waterproofing membrane, including steel-structure plants, concrete roofs, large commercial buildings, data centres, logistics warehouses and airports. The system is compatible with roofs waterproofed with TPO/PVC membrane on various substrates such as colored-steel tile, concrete and timber structures.
