彩钢瓦屋顶支架系统
产品介绍：彩钢瓦屋面光伏支架系统，设计方案灵活度高，可适配工商业与住宅斜屋顶场景。核心优势为采用预装模块化构件，实现快速安装。该系统以铝合金挤压导轨作为主支撑结构，搭配预装夹具、屋面挂钩及标准连接件，可将带框光伏组件平行于屋面坡度直接固定，大幅节约人工成本与安装工时。方案通过配件集成化与工序标准化，兼顾结构稳定性与施工效率。
核心参数：
参数 | 数值 |
材质 | 铝合金6063-T5/热镀锌钢 |
抗风荷载 | 50m/s |
雪荷载 | 1.5kN/m2 |
设计寿命 | 25年 |
质保 | 10年 |
核心优势：
100%无损安装：采用专用夹具夹持彩钢瓦棱边，无需钻孔，彻底杜绝漏水风险，保护厂房防水层完整性；
轻量化设计：全铝结构，重量仅约0.15~0.20kN/㎡，最大限度减轻原屋顶结构荷载负担；
通用性强：多种夹具可选，适配角驰型、直立锁边型、梯形等各类彩钢瓦板型；上部结构部件通用，降低备货成本；
安装快捷：模块化设计，高度预装化，可多作业面同步推进，满足大型项目快速部署需求；
超长寿命：铝合金阳极氧化+304不锈钢材质，耐腐蚀性强，使用寿命可达25年。

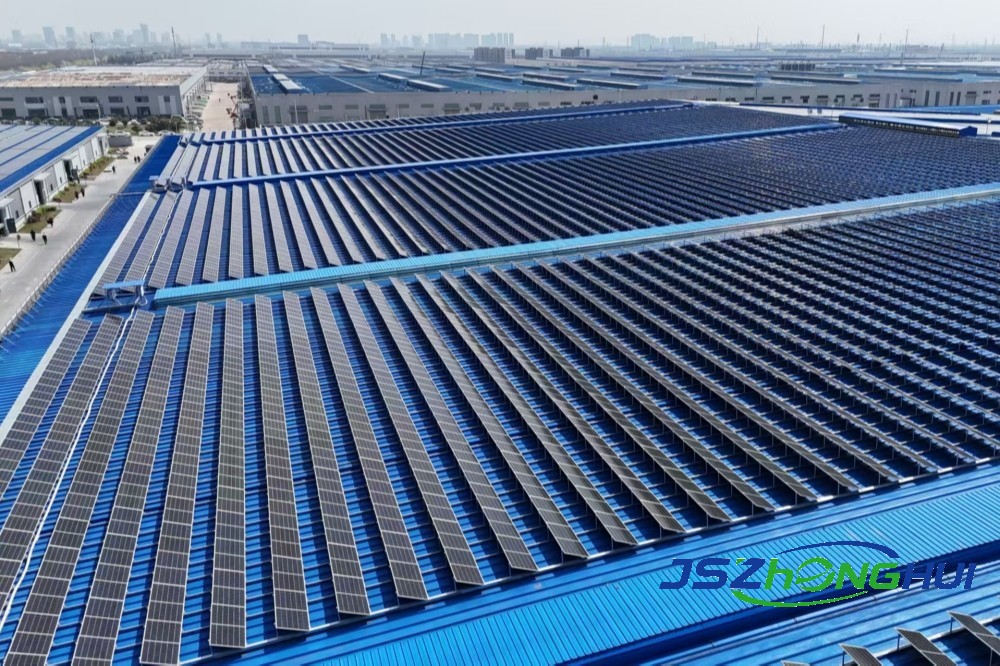

适用场景：适用于各类彩钢瓦（压型钢板）屋面的工商业分布式光伏项目，包括工业厂房、物流仓库、汽车制造工厂、大型商业建筑等
Colored-Steel Roof Mounting System
Product Introduction: The colored-steel roof PV mounting system offers a highly flexible design and suits both commercial and residential pitched-roof scenarios. Its core advantage is the use of pre-assembled modular components for fast installation. Using extruded aluminium alloy rails as the main supporting structure, together with pre-assembled clamps, roof hooks and standard connectors, the system fixes framed PV modules directly and parallel to the roof pitch, greatly saving labour costs and installation man-hours. Through component integration and process standardisation, the solution balances structural stability with construction efficiency.
Core Parameters:
Parameter | Value |
Material | Aluminium alloy 6063-T5/Hot-dip galvanised steel |
Wind load resistance | 50 m/s |
Snow load | 1.5 kN/m² |
Design life | 25 years |
Warranty | 10 years |
Core Advantages:
100% non-destructive installation:dedicated clamps grip the edge of the colored-steel tile with no drilling, completely eliminating the risk of leakage and protecting the integrity of the factory waterproofing layer;
Lightweight design:all-aluminium structure weighing only about 0.15–0.20 kN/m², minimising the load on the original roof structure;
Strong versatility:multiple clamp options for angle-lock, standing-seam, trapezoidal and other colored-steel profiles; common upper-structure components reduce stocking costs;
Fast installation:modular design with a high degree of pre-assembly, allowing multiple work fronts in parallel to meet the rapid deployment needs of large projects;
Extra-long service life:anodised aluminium alloy plus 304 stainless steel, highly corrosion-resistant, with a service life of up to 25 years.
Application Scenarios:suitable for commercial and industrial distributed PV projects on all kinds of colored-steel (profiled steel sheet) roofs, including industrial plants, logistics warehouses, automobile manufacturing factories and large commercial buildings
